9,000 BTU Pioneer Quantum Ultra 23 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with Line Set

Description

Summary

The Quantum Ultra High-Efficiency Ductless Mini Split Heat Pump System provides powerful climate control in a compact and energy-saving design.

• Cooling Capacity: 9,000 BTU/H — 23.0 SEER2 / 13.0 EER2
• Heating Capacity: 10,000 BTU/H — 9.5 HSPF2 / 3.81 COP2
• Power Requirements: 208/230V • 60Hz • 1-Phase
• System Type: High wall-mounted ductless mini split
• Smart Control: Wi-Fi enabled — operable via smartphone through the free Pioneer Airlink App
• Technology: DC inverter with variable-speed operation for optimized performance and efficiency
• Refrigerant: Factory pre-charged with environmentally friendly R454B
• Performance Range: Operates reliably in extreme conditions — down to -13°F (heat) and up to 131°F (cool)

---

Technical Information & Performance

SYSTEM KIT
• Power Supply: 208–230V, 60Hz, 1Ph
• Cooling Rated Capacity: 9,000 BTU/h
• Cooling Range: 2,400–11,000 BTU/h
• Cooling Efficiency: 23.0 SEER2 • 13.0 EER2
• Heating Rated Capacity: 10,000 BTU/h
• Heating Range: 2,400–11,000 BTU/h
• Heating Efficiency: 9.5 HSPF2 (Region IV)
• COP (47°F / 5°F): 3.81 / 1.9
• Refrigerant: R454B
• Recommended Coverage Area: 250–350 sq ft
• AHRI Reference #: 217048749

---

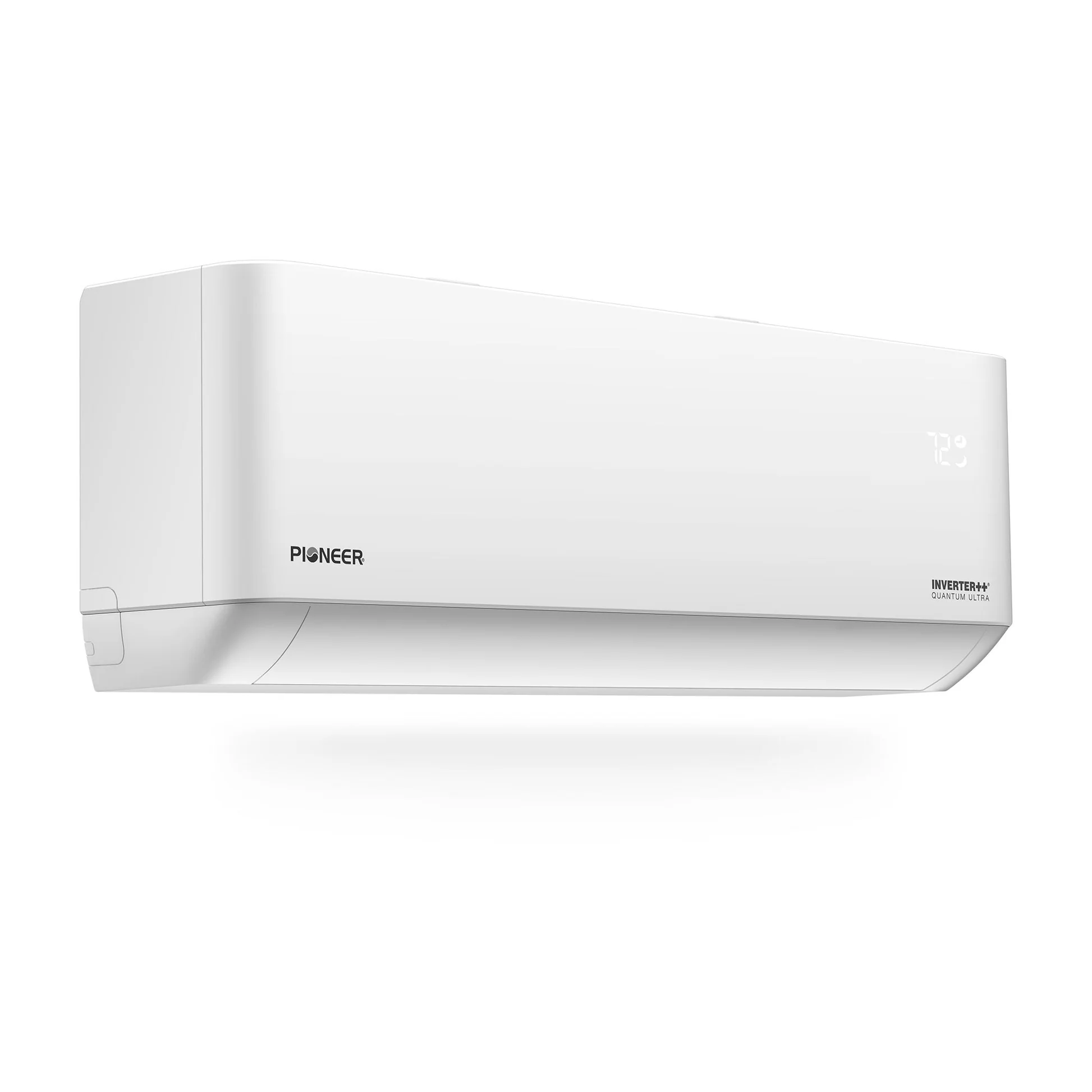

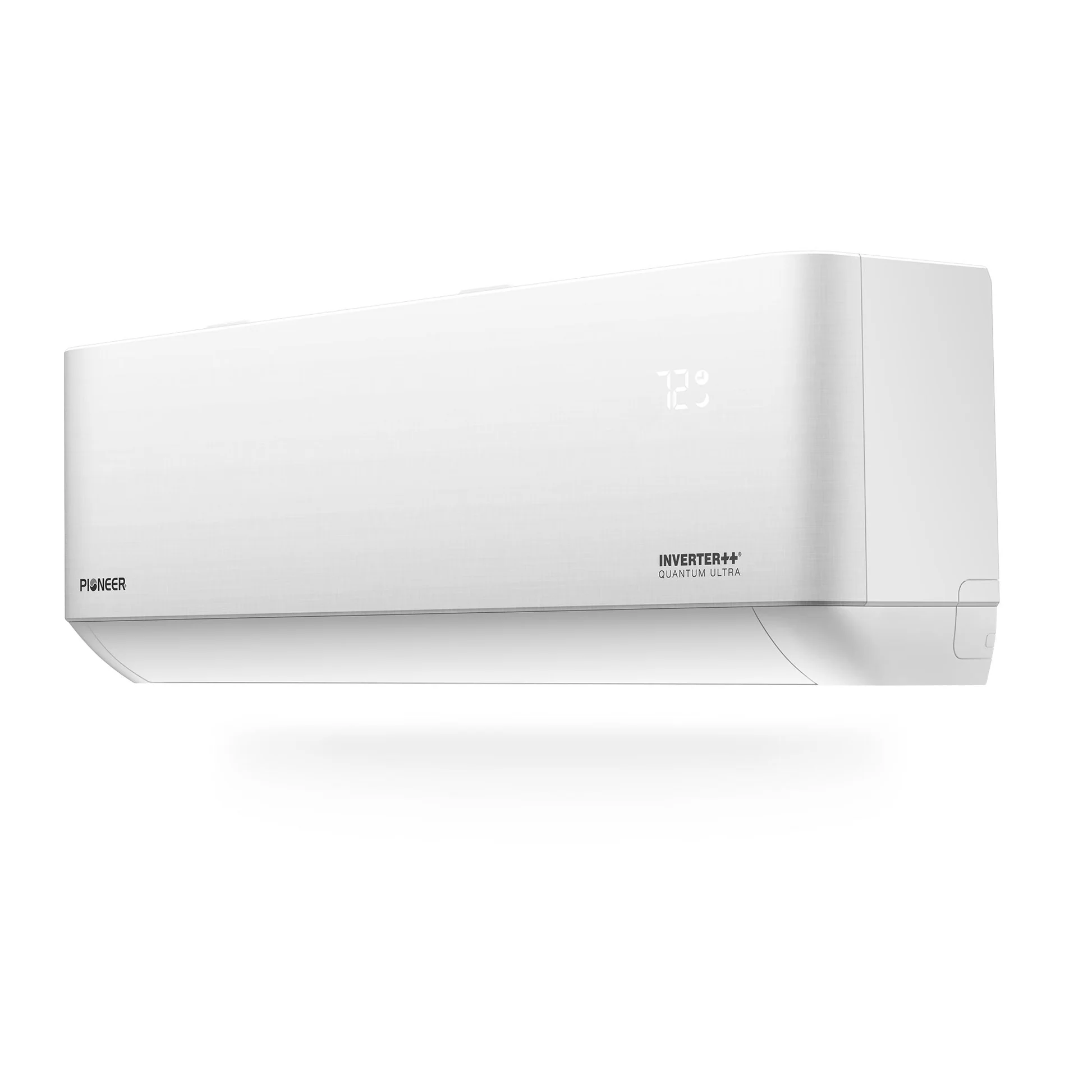

Indoor Unit — WT009GLSI24HLG

• Airflow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
• Noise Level: 43 / 40 / 33 / 31 / 30 dB(A)
• Dimensions: 32¼” × 7⅝” × 12″ (W × D × H)
• Carton Size: 35″ × 10½” × 15″
• Weight: 20.7 lbs (Net) • 25.1 lbs (Gross)

---

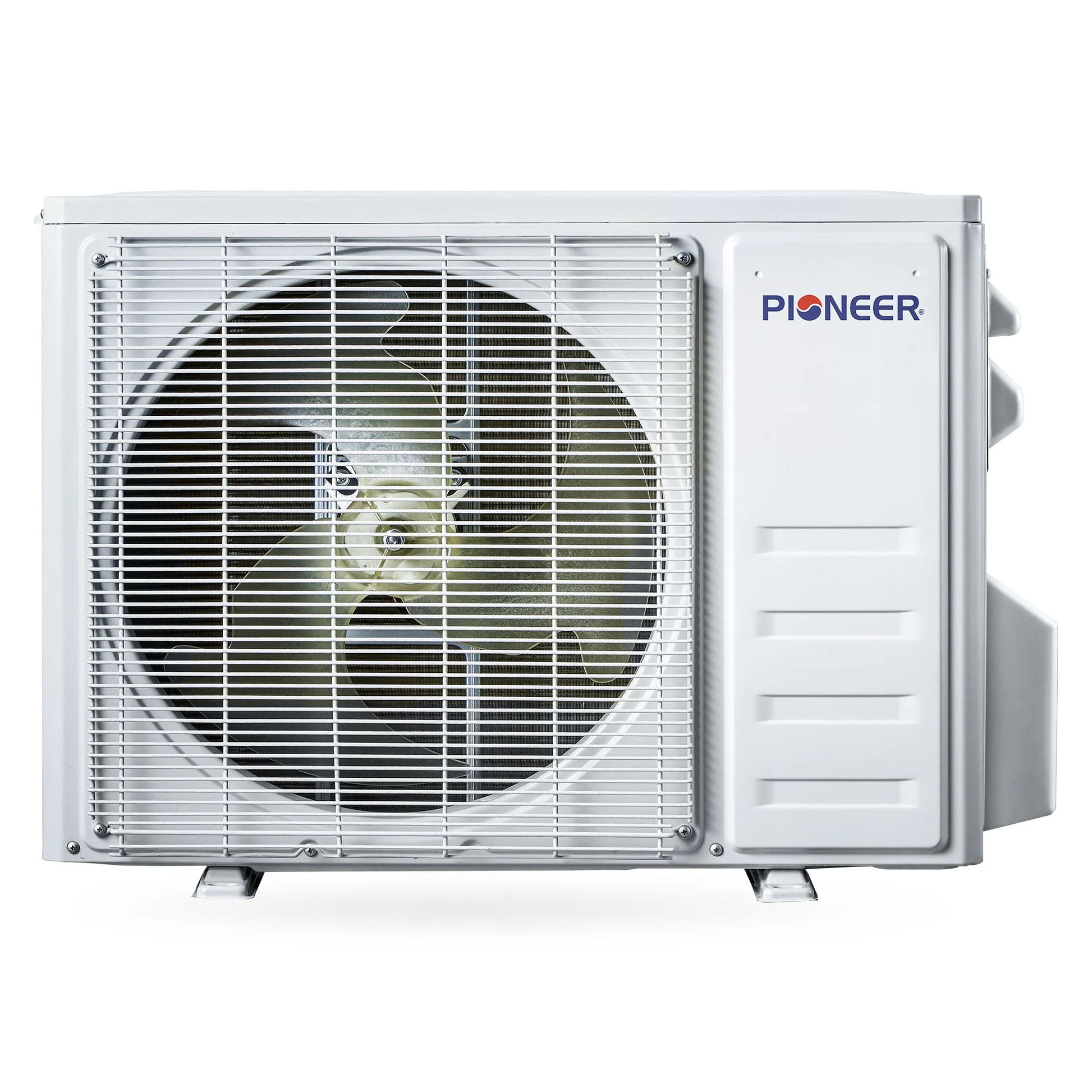

Outdoor Unit — YN009GLSI24RPG

• Required Breaker: 15A (double-pole)
• Sound Level: 50 dB(A)
• Dimensions: 31⅞” × 12″ × 21⅝” (W × D × H)
• Carton Size: 32⅞” × 13″ × 22⅝”
• Weight: 52.7 lbs (Net) • 59.3 lbs (Gross)

---

Product Certifications

• AHRI Certificate
• Energy Guide
• Submittal Sheet



Quantum Ultra™ High-Wall Series Overview

Pioneer’s Quantum Ultra series is engineered for high efficiency, easy installation, and dependable single-zone comfort. Users can control cooling, heating, drying, and ventilation modes through the included remote, while auto-swing louvers and inverter technology maintain balanced airflow with low energy consumption.

---

Important Installation Note

The condenser is pre-charged for up to 25 ft of refrigerant line set per circuit.
Installation kit required for proper operation. THIS UNIT COMES WITH 16FT LINE SET INCLUDED.

---

Key Features

• Multi-mode Heat Pump: Cool / Heat / Dry / Ventilate
• Dual-drain design for flexible installation
• Washable & reusable air filters
• Motorized dual-axis louvers (up-down / left-right)
• Full-function wireless remote
• ECO & Sleep modes for energy savings
• Programmable On/Off Timer
• TURBO mode for quick temperature change
• Self-Clean internal maintenance cycle
• Settings Memory after power loss
• IFEEL — temperature detection at remote location

---

Included in Package

• Indoor Unit
• Outdoor Unit

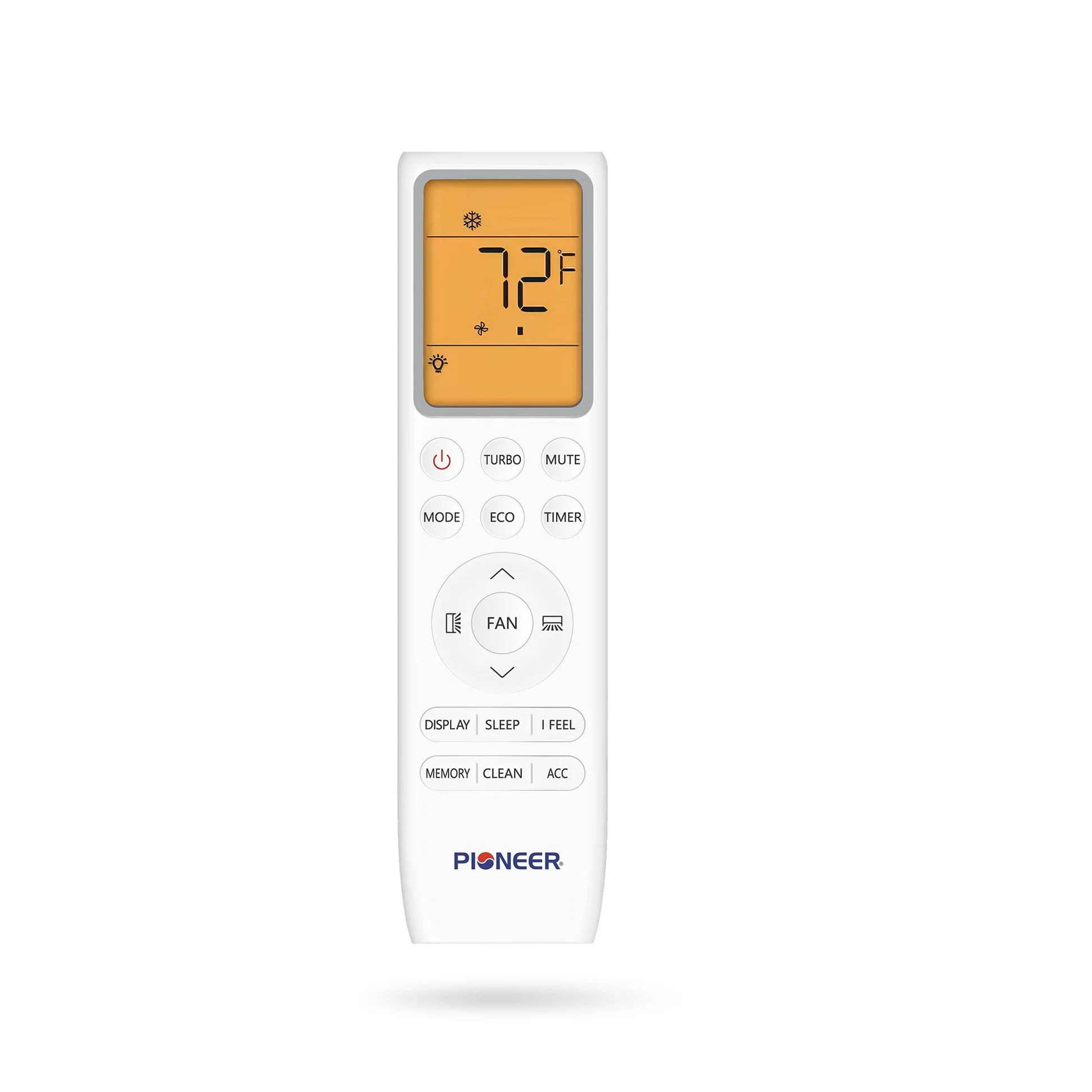

• Wireless Remote + Wall Holder
• Batteries for Remote

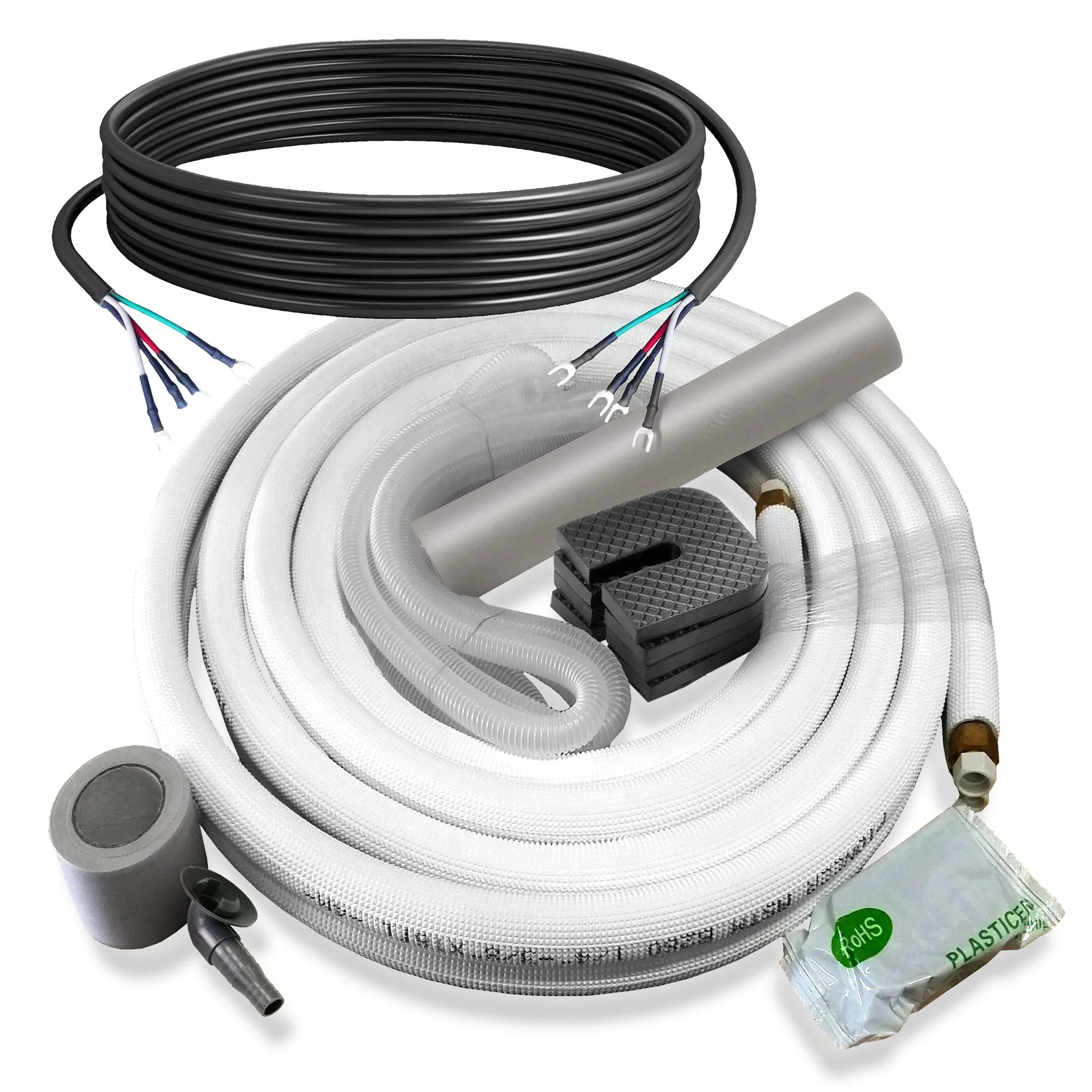

• Custom-length Copper Line Set
• Custom-length Electrical Wiring
• 10 ft Drain Hose
• Wall Passage Sleeve & Putty
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User Manual

---

Warranty

Registration required within 90 days of purchase. Please review our Warranty Policy.

• Up to 5-year Parts Warranty
• Up to 5-year Compressor Warranty
